The Building "Doctor"

I am not a doctor - I think that much is clear.  I don't even play one on TV.

I do have a bag in my car that I call my "doctor bag".  Primarily because of it's size and the fact that it contains tools for when I make house calls on buildings.  I suppose I could just call it a tool bag, but it doesn't have the same zing.

I developed the kit over the years because I am called on to survey existing buildings quite often. In the Senior Living sector, we often add on to existing buildings and sometimes re-purpose them, which requires us to see what we're working with.  Other times, there is a code infraction, and we need to see how to fix it.  I keep this bag in my car at all times.  It is pretty compact so it doesn't take up too much room.  It is highly portable, which is important.  And it contains what I have found to be some essential items.

This is my bag.  The hard hat is there for scale, but it rides in the car with me all the time too.

So that is the size of it.  I could maybe get one pair of shoes in there, but it indeed holds almost anything I might need when assessing a building.

OSHA, OSHA, OSHA.

1.  So in the old days, we could show up on active job sites and no one cared if we architects had any protection or not.  Well not today.  So along with my hard hat, I need a high visibility vest unless I want to be yelled at by the Super.

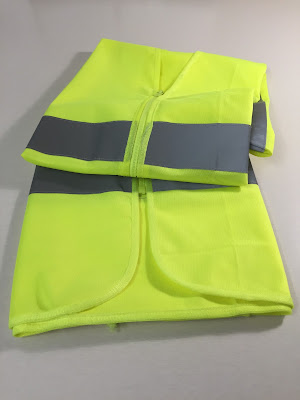

#1 - Yellow is my color, no?

2.  Protect your eyes.  Whether an active job site or not, I want to keep the junk out of my eyes.  I have been in my share of attic where I can see the fiberglass floating around and above enough ceilings, where pieces of the tiles fall all over my head.

#2 - These bad boys fit over my regular glasses, so my eyes are safe PLUS I can see!

3.  Protect your lungs.  For the same reason I want glasses, I sometimes need a mask.  We keep them around the office because building buildings can be dusty or worse.

4.  Protect your ears.  Building buildings is often noisy. too.

#3 - Disposable breathing mask and #4 - ear protection.

5.  Protect your hands.  I have to climb into attics far more than I ever dreamed.  Have you ever spent a lot of time handling old fire protection treated lumber?  I have.

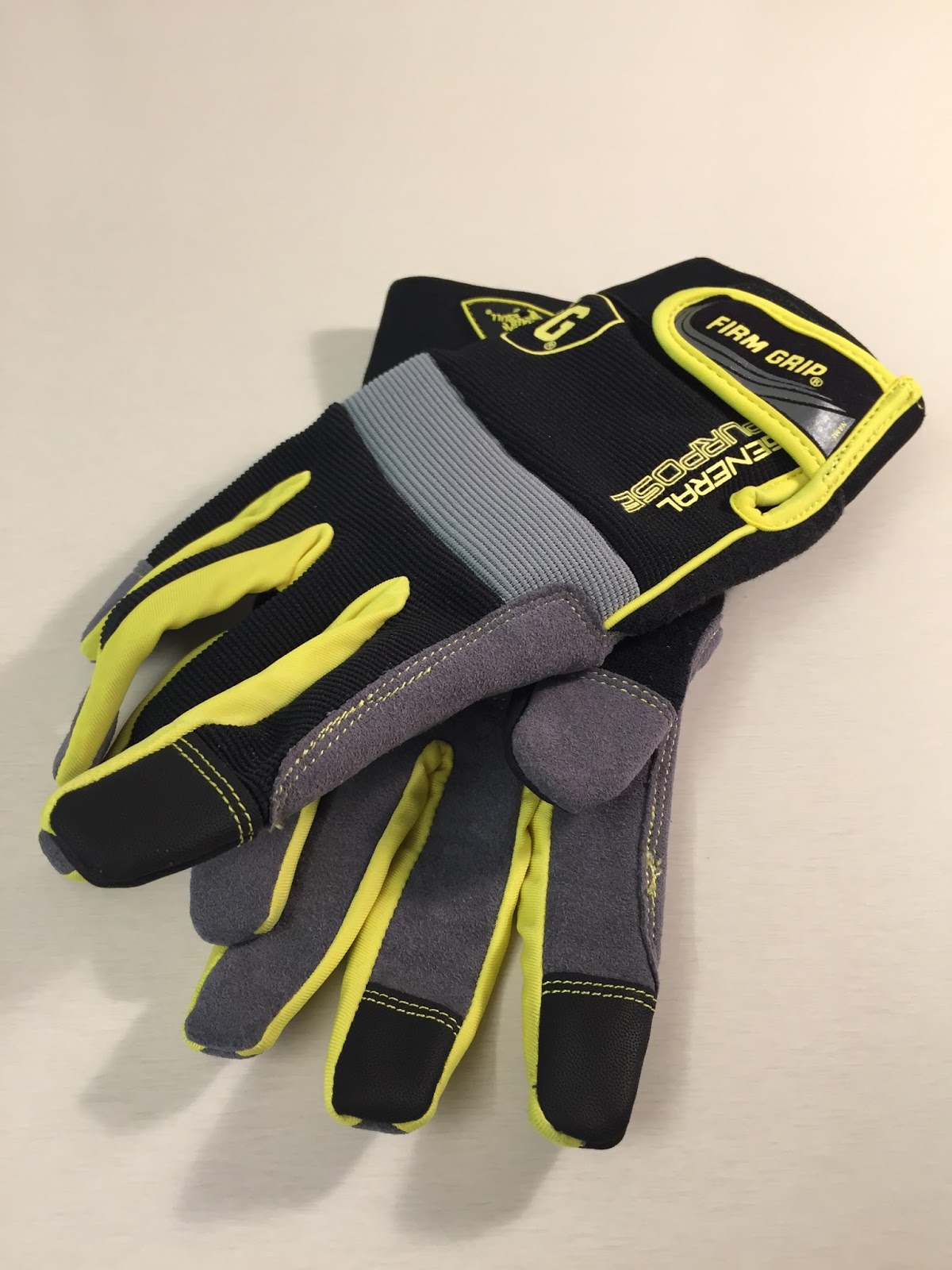

#5A - Heavy gloves protect from splinters and undesirable materials.

#5B - Vinyl gloves add no weight or bulk to my kit, so I threw a pair in, just in case.

Okay, so all I have done so far is protect myself from the building.  What's up with that?  What do I use to actually evaluate a building?

6.  Light.  I sometimes carry other sources of light, but this one has a hook and a magnet so it can sometimes be set up so I can go hands free to make notes or sketches.  There is a band of tape over the battery case because I have actually dropped it and lost the batteries in blown in fiberglass insulation in a roof.  Trust me.  You do not want that to happen.

#6 - This thing was so cheap, but oh, so worth it.

7.  So...this next one is self-explanatory.

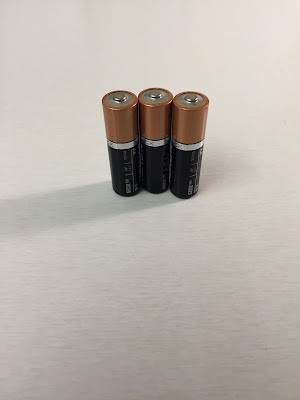

#7 - Take extra batteries for all devices.

8.  I just got this head lamp to augment number 6.

#8 - Additional light is always good.

9.  Measure twice, climb into the attic only once.

#9 - Old reliable, analogue measuring device.

10.  I said measure twice...  Sometimes, in an attic, you literally can't get to where you want to measure.  So a laser measuring device can save many scraped shins.  Full disclosure, I don't keep this in the car, I wouldn't want it to get stolen or expose it to the hot and cold.

#10 - Such a time saver.

11.  That's not a knife...  Yes it is.  A small Swiss Army pocket knife can be the ultimate multi-tasker. It can scrape off paint or gunk off of something you need to read.  It can see how soft a timber beam is.  It can even open a beverage at the end of the day...

#11 - Just don't try to take it on an airplane...

12.  Electrical tape.See #6.  I wish I had this tape when I dropped and broke the back of my flashlight.

#12 - Can also be used to mark things and not damage them.

13.  Seriously, a selfie stick?  Yes.  I just got this one.  See 'Door Labels And Where to Find Them' for why.  Sometimes you need a picture of something you can't see from where your eyes are.  I can reach the top of a 6'-8" door, and maybe a 7'-0" door.  But not an 8'-0" door,  Not without a ladder.  And a ladder doesn't fit in my bag.

#13 - I hope to test this out soon.  I can imagine there will be other reasons besides door labels that I would find this useful.

14.  My phone (not pictured).  I didn't take a picture of it because that is what I use to take pictures.

15.  360 degree camera.  These are great to get all the walls, floors and ceilings of the space in one shot.  You can view the photos in a proprietary viewer, and it really does save time.

#15 - This doesn't stay in the bag all the time either.  It, like the lase, is shared company wide.

16.  Notebook and many colors of pens.

#16 - And be sure to wear pants and shirts with lots of pockets...

So that is my doctor bag.  Maybe this will give you an idea of what to have on hand on your next survey.

House or Home?

The bulk of my architectural career has and is spent designing structures that are not considered Residential per the building codes.  Some may call it Commercial.  Much of it is Institutional by Code.  But that does not mean it is not someone’s Home.  You see, I primarily design buildings in the Senior Living sector; have been my entire career.

When I began my career more than 20 years ago, there was already a movement under way to make retirement and senior living spaces much more residential.  Even in dwellings classified as Skilled Nursing Facilities, the idea that these building should feel like someone’s home had been one that many providers had embraced.  The problem was that most of the providers (at that time) had buildings that looked like hospitals instead of your home.

A Cruciform Church.  Early hospitals took their shapes from churches.  Thus, so did the early nursing home.

Beddington Corner Hospital. (source: historic-hospitals.com )
The economy is easy to see.  The result is not necessarily a religious experience.

What can you do for an existing building?

I feel the best way to illustrate how our buildings fulfill the qualifications of "home" is by showing how we can improve existing condtions.  The difficulty lies in all of the regulations associated with a facility that provides nursing care to its residents.  The International Building Code identifies these buildings as an Institutional or I-2 building.  NFPA reviews these buildings in (almost) exactly the same way as a hospital (Health Care).  In either case, the Use Group enclosed therein is the second most hazardous category according to code.  What would be worse in terms of hazard?  Think fireworks factory.  The hazard to Skilled Nursing Facilities is exiting…someone bed or chair bound is not able to get out on their own; or not capable of self-preservation in CodeSpeak.  Also in Institutional buildings, nearly all aspects of the building have to be accessible.  So features required in these buildings are not similar to those you have in your home, nor in a building pre-1990.

So what can we do?

Sometimes an improvement to the exterior facade can make a significant impact with easier application as it is, more or less, surface applied.  However, most Institutional buildings are non-combustible construction, so there are limits.  You can’t just add anything to the exteriors.  In new construction, you can utilize scale and materials to humanize the sequential experience.  Many vintage Skilled Nursing Facilities are economic 'blocks'.  Even modest additions to the exterior may improve the approach to a building.

Mennonite Home Exterior - Before

Mennonite Home Exterior - After (Obviously).  The addition to the right created a one-story, human scale.

But let’s face it, the folks who reside in these buildings spend nearly 100% of their time inside.

What about the interiors?

In new buildings, it is much easier to provide open, residentially scaled rooms on the interior with connections to the outside.  In the many, many renovation projects of nursing homes we have done, it is much more of a challenge.  Traditionally. resident rooms line up in a continuous 8-foot wide corridor up to 120 feet from the original nurse’s station.  One way to bring some residential life to these facilities is to blow out a couple of rooms to allow the addition of a living room with access to windows.  Many of these buildings are non-combustible, as I said earlier, so exterior and corridor walls are often concrete block and they do not have tall ceilings.  You can see the challenges.

Corridor - Before.  Hard and highly reflective surfaces are not atypical in vintage nursing homes.

Corridor Concept Sketch

Corridor  - After.  Sometimes all you have to work with are finishes and lighting.

Another issue is that whether there are 15 or 50 residents, they all need to eat in a dining room.  No one has a dining room with seating for 50 (well, no one that invites me over for dinner anyway).  These rooms need to be broken up visually into human scaled rooms.  Some times that means providing a serving (residential looking) kitchen with several smaller rooms around it for dining.

Dining Room - Before.  No connection to the outside or the community at large.

Dining Room - After.  Here we had the opportunity to add skylights to add natural daylight.

Adding just a bit of privacy and homelike environments can also do wonders for one's main living area.  This is especially true in a double occupancy room.

A Double Room - Before.  Only the thin curtain between you and a neighbor.

A Double Room - After.  There is still a curtain, but the interior window provides a more substantial barrier.
FYI: the window wall is not a full height wall so as to not trigger sprinkler revisions.

There has been a more recent movement for skilled nursing called the Green House Project © about 10 years ago.  And while the word “house” is in the name, the feeling of “home” is what is intended.  This method limits the occupant count to 10, favors a universal worker for more homelike care, and has strict spatial rules.  This project is an actual Brand-name developed by a doctor and requires a lot of staff training.  The concept has a lot of merit and you can learn a lot more about it on their website here:   The Green House Project

It turns out that concepts we (not just my firm but others, too) had in the 1990’s have only just made it to the Code books.  In 2012, the NFPA 101 Life Safety Code addressed the ability to allow a kitchen to be open to the corridor (with a whole lot of provisions).  Nearly the same provisions made it to the 2015 IBC.  In fact, the Commentary shows a floor plan illustrating the open kitchen concept with a plan by our office in 1995.  For twenty years, we had to convince State and Local jurisdictions that it should be allowed, so that is a little sweet reward to be the example in the Code Book!

ICC used this 20 year old project of RLPS' to illustrate a brand new concept in the 2015 IBC.

While many may not consider what our office does as "residential", I would argue that it is extremely important to our end users in the buildings we design that the spaces, "Look like, act like, feel like home."  This quote is attributed to one of our clients, who had the vision to create the first freestanding Hospice facility in Pennsylvania.  That's another topic in itself.
